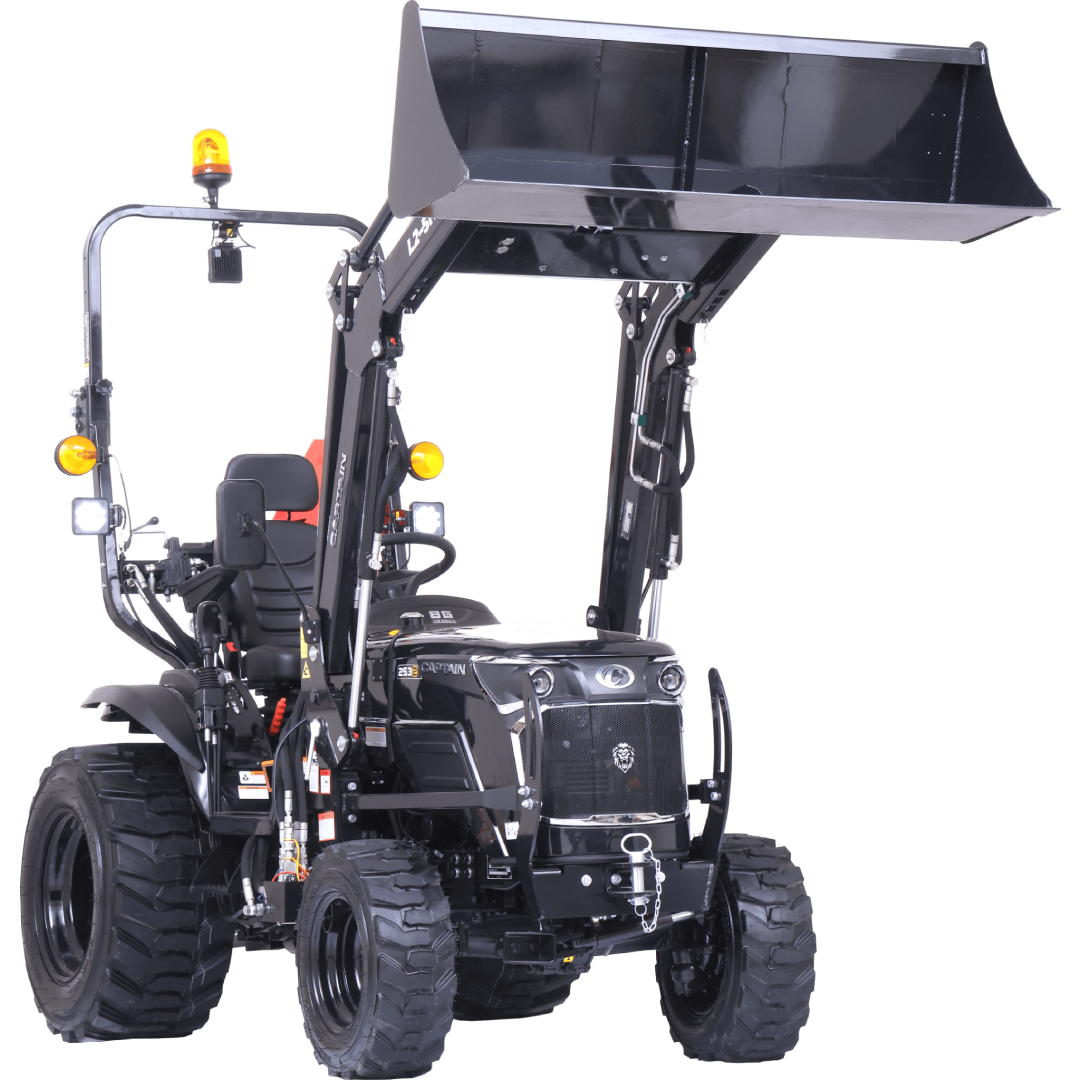

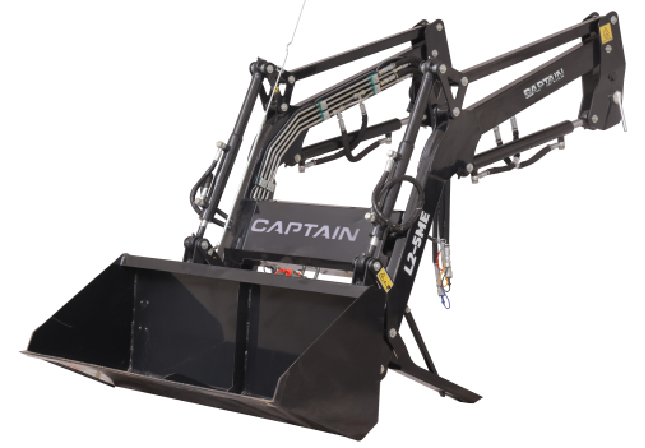

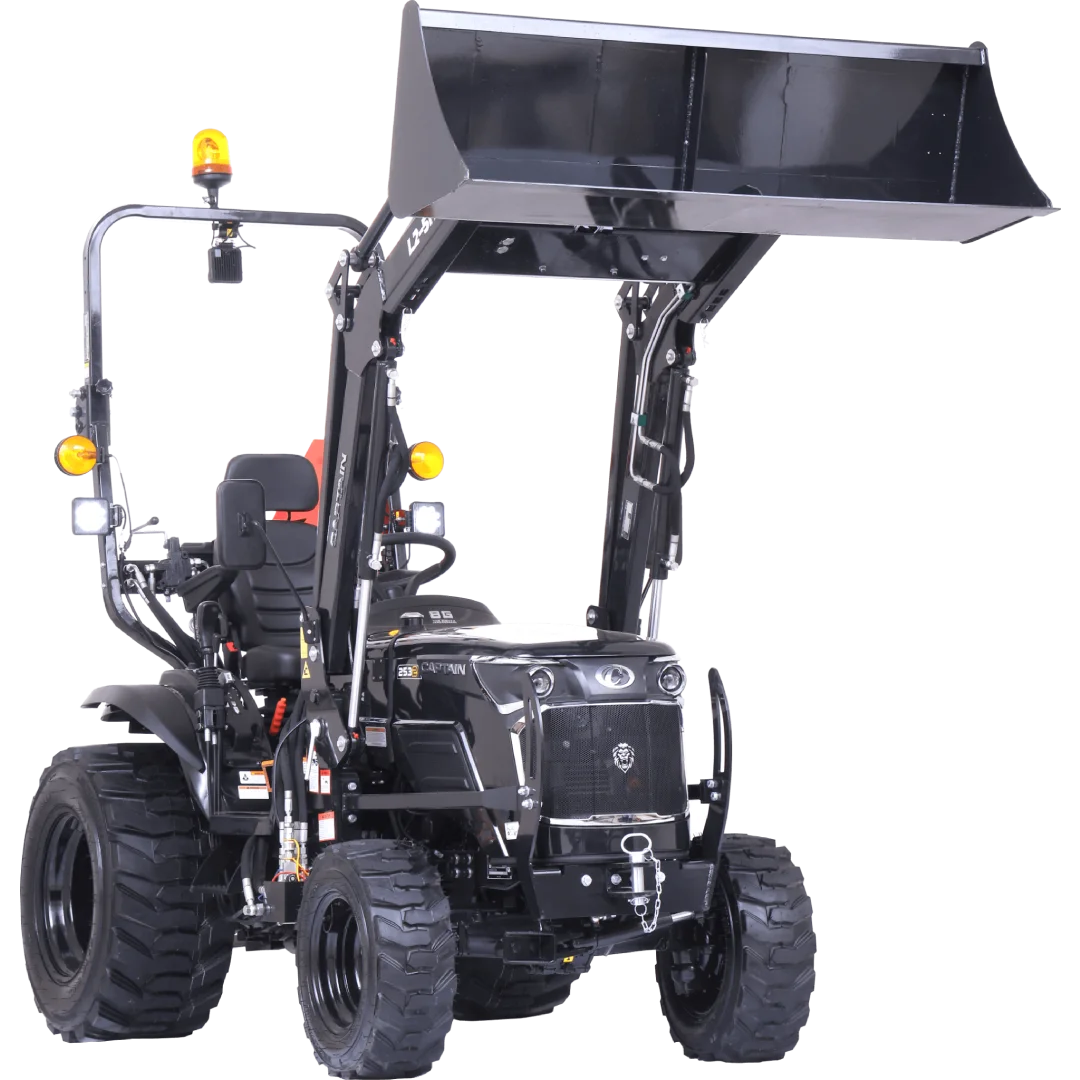

Loader
Loader is designed for efficient material handling and lifting operations in agricultural and commercial applications. It is ideal for loading, unloading, and transporting materials such as soil, manure, gravel, feed, and harvested produce. Built for strength and durability, our loader offers smooth hydraulic operation, high lifting capacity, and precise control. Suitable for use on various terrains, it enhances productivity, reduces manual effort, and ensures safe and reliable performance in day-to-day operations.

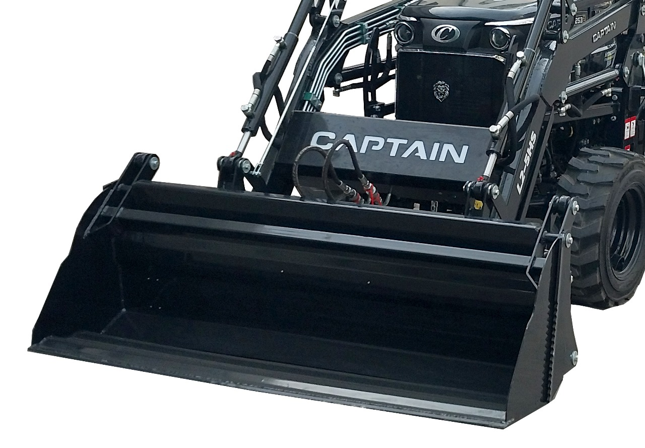

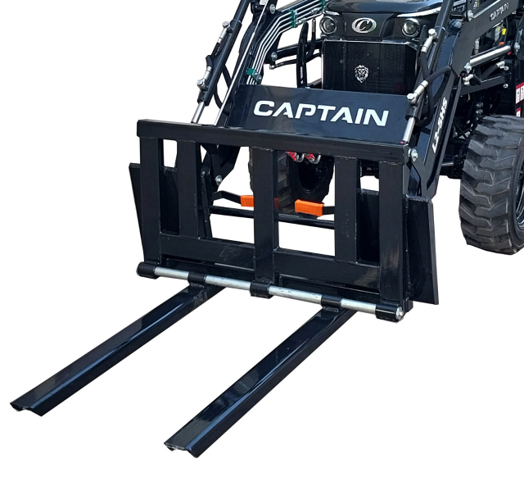

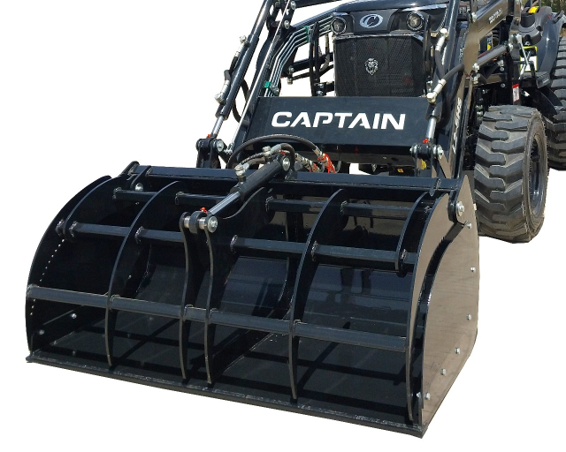

Loader Attachment Options
Choose from a range of loader attachments designed to expand the capability of your tractor. Whether moving soil, handling materials, or lifting pallets, these options deliver flexibility for a variety of tasks.
Technical Specifications
| Specification (Standard Bucket) | Loader: L2-5ME (Mechanically self levelling) |
| Pivot Pin height at maximum, inch(mm) | 93 (2375) |
| Height bucket parallel to ground at maximum, inch(mm) | 83 (2108) |
| Bucket fully tilted bottom height, inch(mm) | 69 (1742) |
| Bucket reach when fully dumped, inch(mm) | Bonnet-12(311) & Hook-9(224) |
| Bucket tilt (dump) angle | 54° |
| Bucket forward position from front wheel center, inch(mm) | 60(1534) |
| Bucket roll back angle at ground level | 42° |
| Bucket (parallel) height below ground level (digging depth), inch(mm) | 3(77) |
| Bucket fully tilted top height, inch(mm) | 104(2651) |
| Loader frame front top to ground level, inch(mm) | 40(1027) |
| wheel base, inch(mm) | 59(1490) |
| Grill guard (bumber-front hood/bonnet) | Standard |
| Bucket width, inch(mm) | 49(1250) |
| Lift capacity (at Pivot pin, max. height), lbs(kgs.)* | 1102(500) |
| Loader weight without attachment, lbs(kgs.) | 639(290) |
| Standard bucket weight, lbs(kgs.) | 115(52) |
